Product Model |
T-0150IU(15") |
T-0170IU(17") |
T-0190IU(19") |
Resolution |
1024 x 768@60Hz |
1280 x 1024@60Hz |
1280 x 1024@60Hz |
View Area |

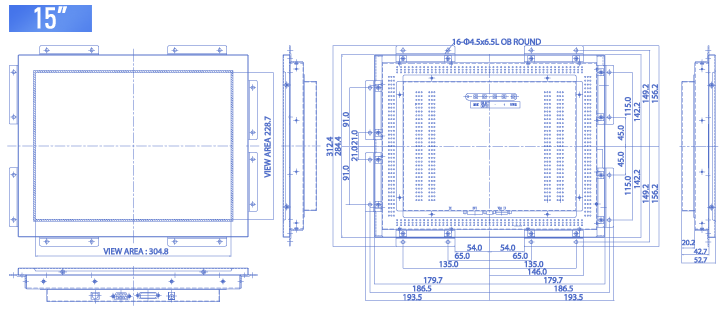

304.8(W) x 228.7(H)mm |
339.8(W) x 272.5(H)mm |

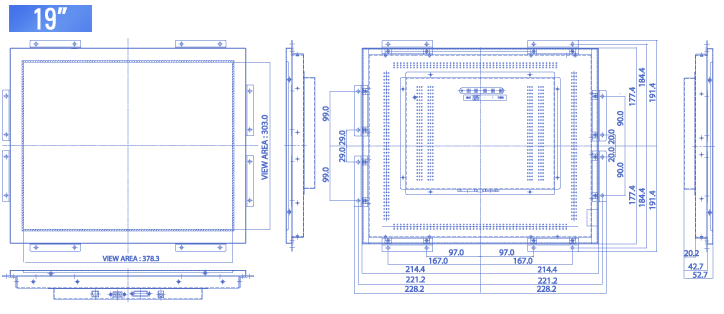

378.3(W) x 303.0(H)mm |
Pixel Pitch |
0.297(H) x 0.297(V)mm |
0.264(H) x 0.264(V)mm |
0.098(H) x 0.294(V)mm |
Color Depth |
16.7M colors |
16.7M colors |
16.7M colors |
Contrast Ratio(Typ.) |
800 : 1 |
800 : 1 |
800 : 1 |
Luminance |
250 cd/§³(typ) |
300 cd/§³(typ) |
300 cd/§³(typ) |
Response Time |
8ms |
5ms |
5ms |
Viewing Angle |
140(H) x 140(V) |
160(H) x 160(V) |
160(H) x 160(V) |
Detection Form |
|
Infrared rays interception detection
form |
|
Report Rate |
|
Averge. 50 time/sec |
|
Operating Systems |
|
Windows 98/ME/2000/XP/VISTA |
|
Touch Interface |
|
USB 1.1/2.0 |
|
Supply Voltage |
|
12[V]DC |
|
OSD Language |
|
English, Germany, French, Spanish, Korean |
|
Storage Temperature |
-10¡É ~60¡É |
-10¡É ~60¡É |
-10¡É ~60¡É |
Operation Temperature |
0¡É ~ 40¡É |
0¡É ~ 40¡É |
0¡É ~ 40¡É |
Power Consumption |
20W |
21W |
22W |
Weight |
6.5kg |
7kg |
7.5kg |
Accessory |
Driver CD, DC Adaptor, Power
Code, RGB Cable, Touch Cable (DVI Cable Option) |
Warranty |
3 Years |
|
|
 |
 |
 |
 |
|
|
