> PRODUCT > Resistive Openframe
  7¡±~12.1¡±
  15¡±~19¡±
  21¡±~26¡±


Product Model T-0150RU(15") T-0170RU(17") T-0190RU(19")
Resolution 1024 x 768@60Hz 1280 x 1024@60Hz 1280 x 1024@60Hz

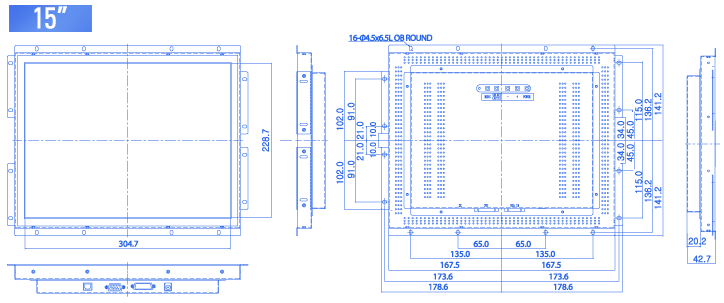

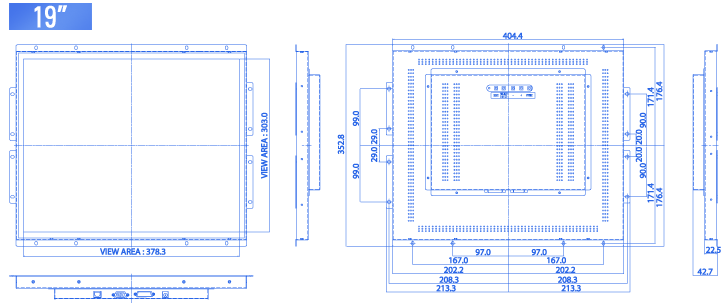

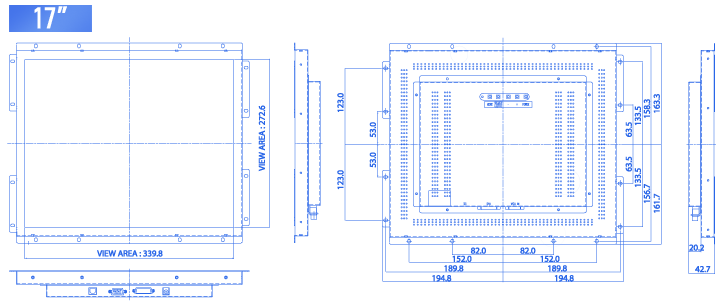

View Area 304.7(W) x 228.7(H)mm 339.8(W) x 272.6(H)mm 378.3(W) x 303.0(H)mm
Pixel Pitch 0.297(H) x 0.297(V)mm 0.264(H) x 0.264(V)mm 0.098(H) x 0.294(V)mm
Color Depth 16.7M colors 16.7M colors 16.7M colors
Contrast Ratio(Typ.) 800 : 1 800 : 1 800 : 1
Luminance 250 cd/§³(typ) 300 cd/§³(typ) 300 cd/§³(typ)
Response Time 8ms 5ms 5ms
Viewing Angle 140(H) x 140(V) 160(H) x 160(V) 160(H) x 160(V)
Detection Form

4 or 5-wire Resistive Touch


Touch Screen Resolution   1024 x 1024
Report Rate   Averge. 84 point/sec
Operating Systems   Windows 98/ME/2000/XP/VISTA
Touch Interface   USB 1.1/2.0
Supply Voltage   12[V]DC
OSD Language

English, Germany, French, Spanish, Korean


Storage Temperature -10¡É ~60¡É -10¡É ~60¡É -10¡É ~60¡É
Operation Temperature 0¡É ~ 40¡É 0¡É ~ 40¡É 0¡É ~ 40¡É
Power Consumption 20W 21W 22W
Weight 6.2kg 6.7kg 7.2kg
Accessory Driver CD, DC Adaptor, Power Code, RGB Cable, Touch Cable (DVI Cable Option)
Warranty 3 Years
